Core advantages

1. Lightweight and thin

The weight is only 10.2kg/piece, and the unit weight is 2.9kg/m²; the components are thin and suitable for roofs such as color steel tiles with limited load, reducing the
load-bearing pressure of the roof.

2. Reliable performance and anti-fake

• Anti-hail impact, zero power attenuation, no risk of cracks; wind resistance level 17, front load 5400Pa, back 2400Pa.

• The maximum system voltage is 1500V DC, the operating temperature is -40℃~+85℃, the temperature coefficient is excellent, and the power generation performance is
good in high-temperature environments.

3. Warranty and Insurance

12-year product quality warranty, 25-year power warranty; first-year attenuation <1%, 25-year output ≥89.4%, underwritten by China Continent Property Insurance,
and has a full set of TUV, CE, IEC, and ISO certifications.

4. Installation and operation-friendly

• The clamp is quick to install and can be disassembled without damage, so roof renovation will not be affected;

• MC4 compatible connector, IP68 junction box; output cable can be customized to adapt to various construction scenarios.

5. The appearance can be customized

The surface color and pattern can be customized, taking into account architectural aesthetics, and are suitable for BIPV building photovoltaic integration projects.

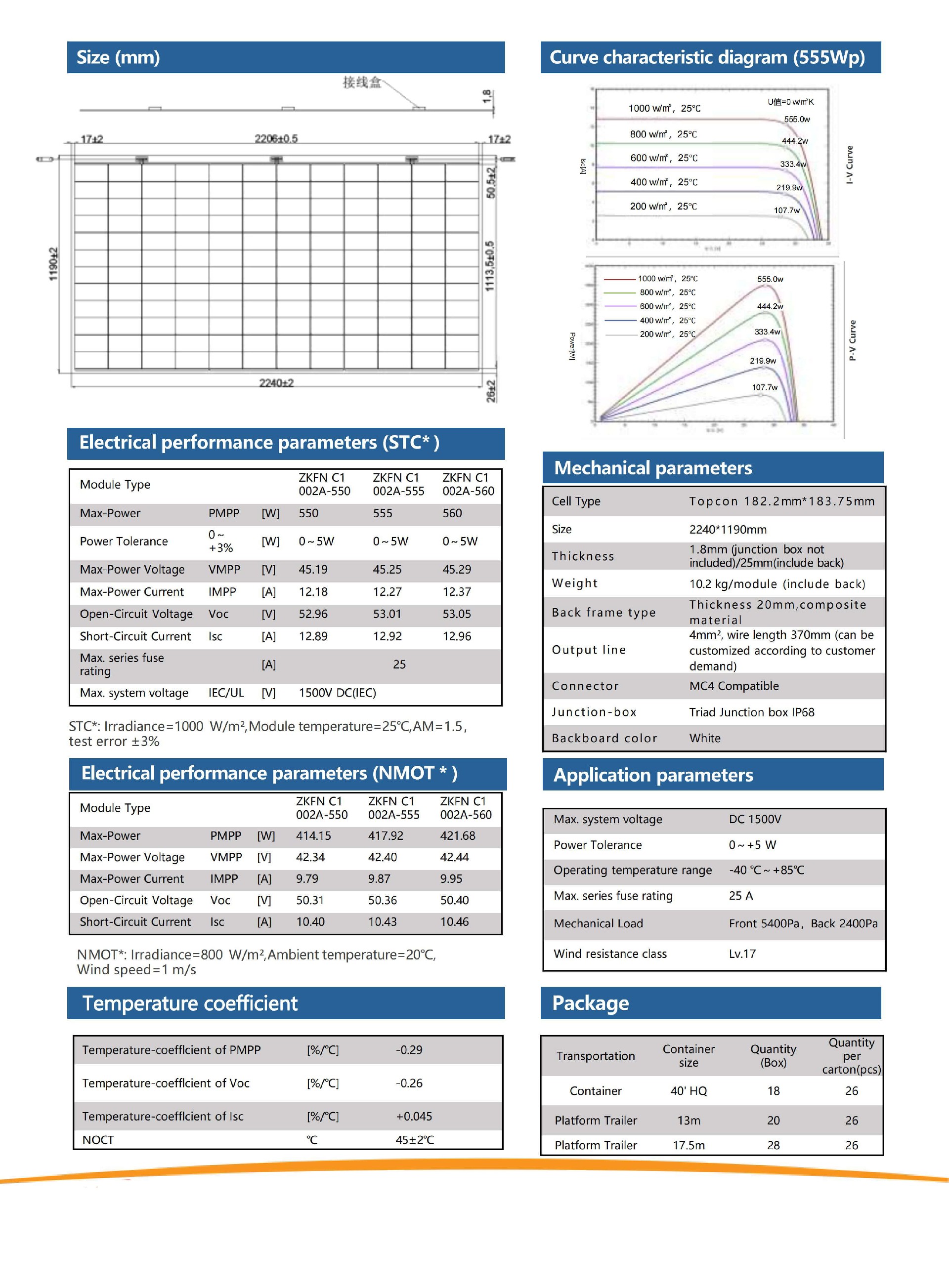

Basic parameters

Size 2240×1190mm, battery 182.2mm Topcon; packaging supports bulk transportation in containers and flatbed trailers
