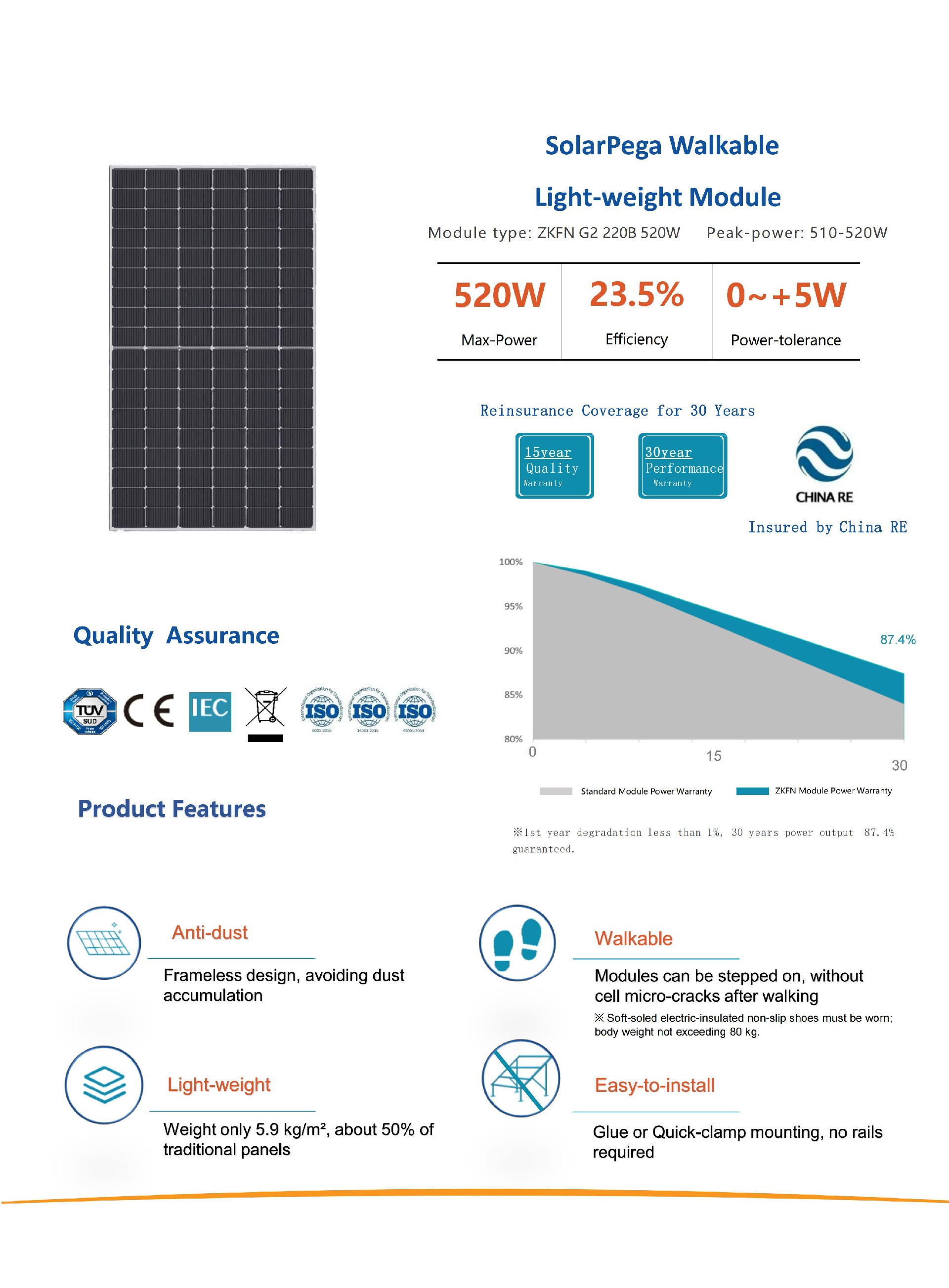

Product features of SolarPega anti-trampling light rigid component (ZKFN G2 220B)

Power level 510-520W, Topcon battery, conversion efficiency 23.5%, power tolerance 0~+5W.

Core advantages

1. Lightweight and significant weight reduction

The unit weight is only 5.9kg/㎡, which is 50% lighter than traditional components. It is suitable for old color steel tile roofs with limited load and reduces the load-bearing
pressure of the roof.

2. Unique structure, easy to install

• Bracket-free: Can be installed with glue or Quick-clamp, no traditional brackets are required, simplifying construction.

• Frameless design, self-cleaning by rainwater, and anti-dust accumulation effect.

• Anti-trampling: Wearing soft-soled insulating shoes can trample on the battery. The battery will not easily crack after being trampled,
which facilitates on-site roof construction and maintenance (weight limit ≤80kg).

3. Performance and mechanical strength

The maximum system voltage is 1500V DC; the operating temperature is ‑40℃~+85℃; it has passed the 25mm hail impact test;
the front static load is 3600Pa and the back is 2400Pa, adapting to complex outdoor working conditions.

4. Extra long warranty and insurance

15-year product quality warranty, 30-year power warranty; first-year attenuation less than 1%, 30-year output power not less than 87.4%;
underwritten by China Continent Property Insurance, with a full set of authoritative certifications such as TUV, CE, IEC, and ISO.

5. Hardware configuration

IP68 junction box, MC4 compatible connector; output cable supports customization on demand, adapting to a variety of industrial and commercial roof projects.

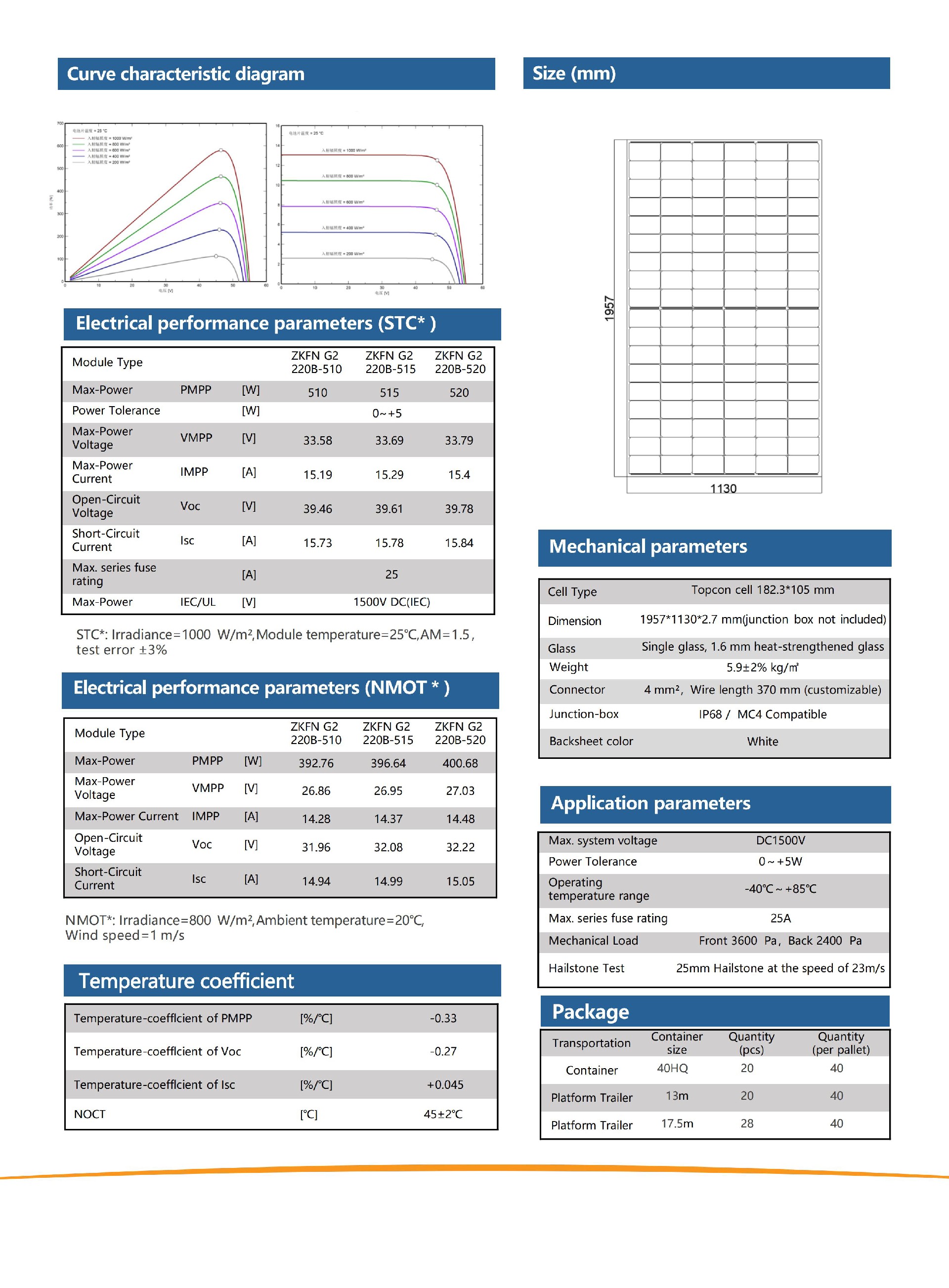

Basic parameters

Component size is 1957×1130mm; 1.6mm coated semi-tempered glass; supports mass transportation in containers and flatbed trailers.
