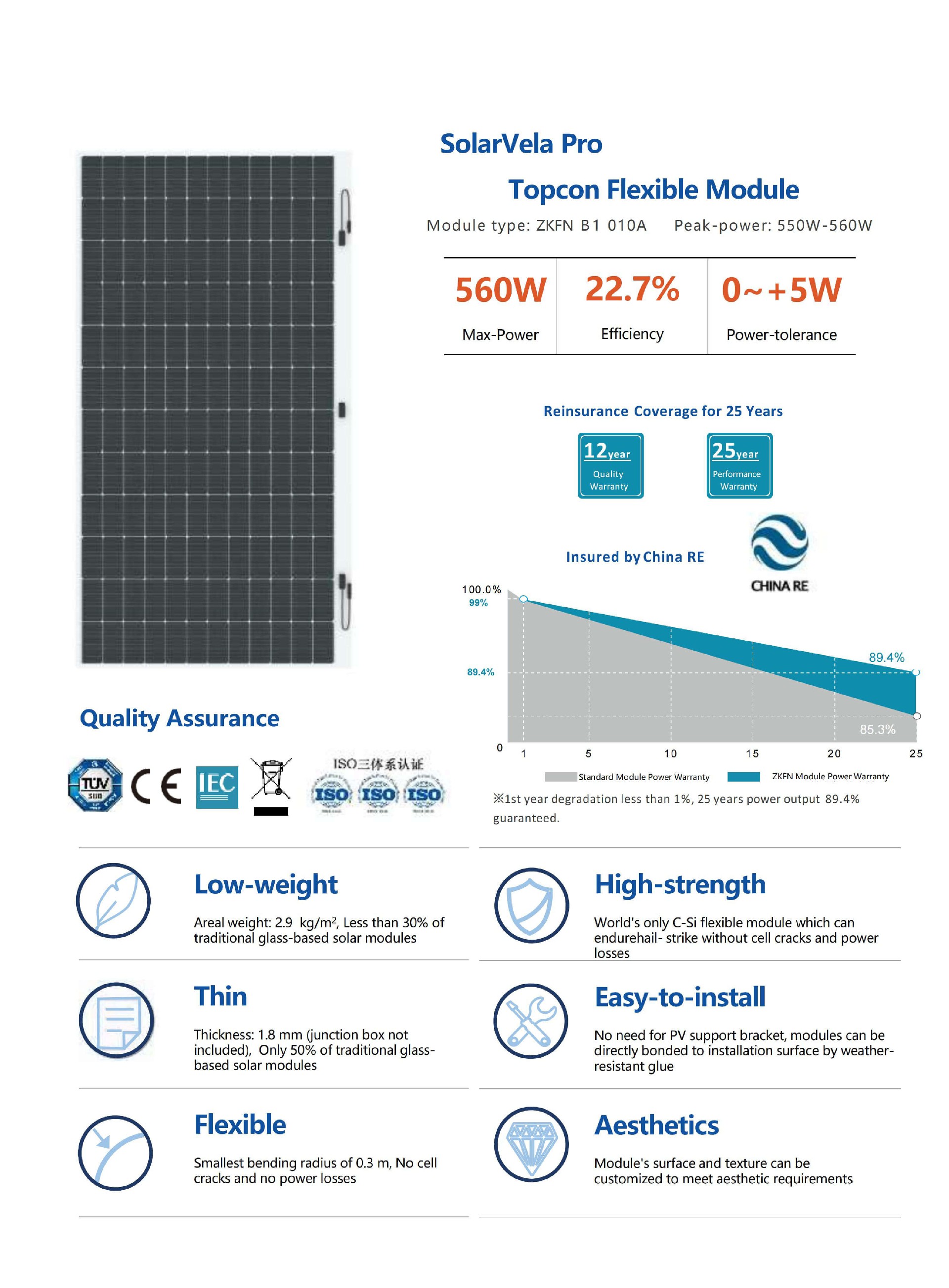

Product features

The power range is 550-560W, Topcon battery, conversion efficiency 22.7%, power tolerance 0~+5W.

Core advantages

1. Ultra-light, ultra-thin, flexible and bendable

The unit weight is only 2.9kg/㎡, 30% lighter than traditional glass components; the thickness is 1.8mm, only half of conventional components;
the minimum bending radius can reach 0.3m, the battery has no cracks and no power attenuation in the bent state, and is suitable for curved and special-shaped roofs.

2. Reliable and resistant to harsh working conditions

The industry supports that there will be no hidden cracks and zero power attenuation due to hail impact; the static load on the front is 5400Pa and the back is 2400Pa;
the system voltage is DC1500V, the operating temperature is ‑40℃~+85℃, and it has excellent high-temperature power generation performance.

3. Easy and convenient installation

No brackets are needed, it can be directly pasted on the original building surface, and construction can be completed quickly using structural adhesive.
It is suitable for old roofs with poor load conditions.

4. Complete quality assurance and certification

12-year product quality warranty, 25-year power warranty; attenuation in the first year is less than 1%, and the output power is not less than 89.4% in 25 years;
underwritten by China Continent Property Insurance, it has a full set of authoritative certifications such as TUV, CE, IEC, and ISO.

5. The appearance can be customized

The surface color and pattern can be customized to meet architectural aesthetics and adapt to BIPV integrated photovoltaic projects.

IP68 junction box, MC4 compatible connector, output cable supports customization.

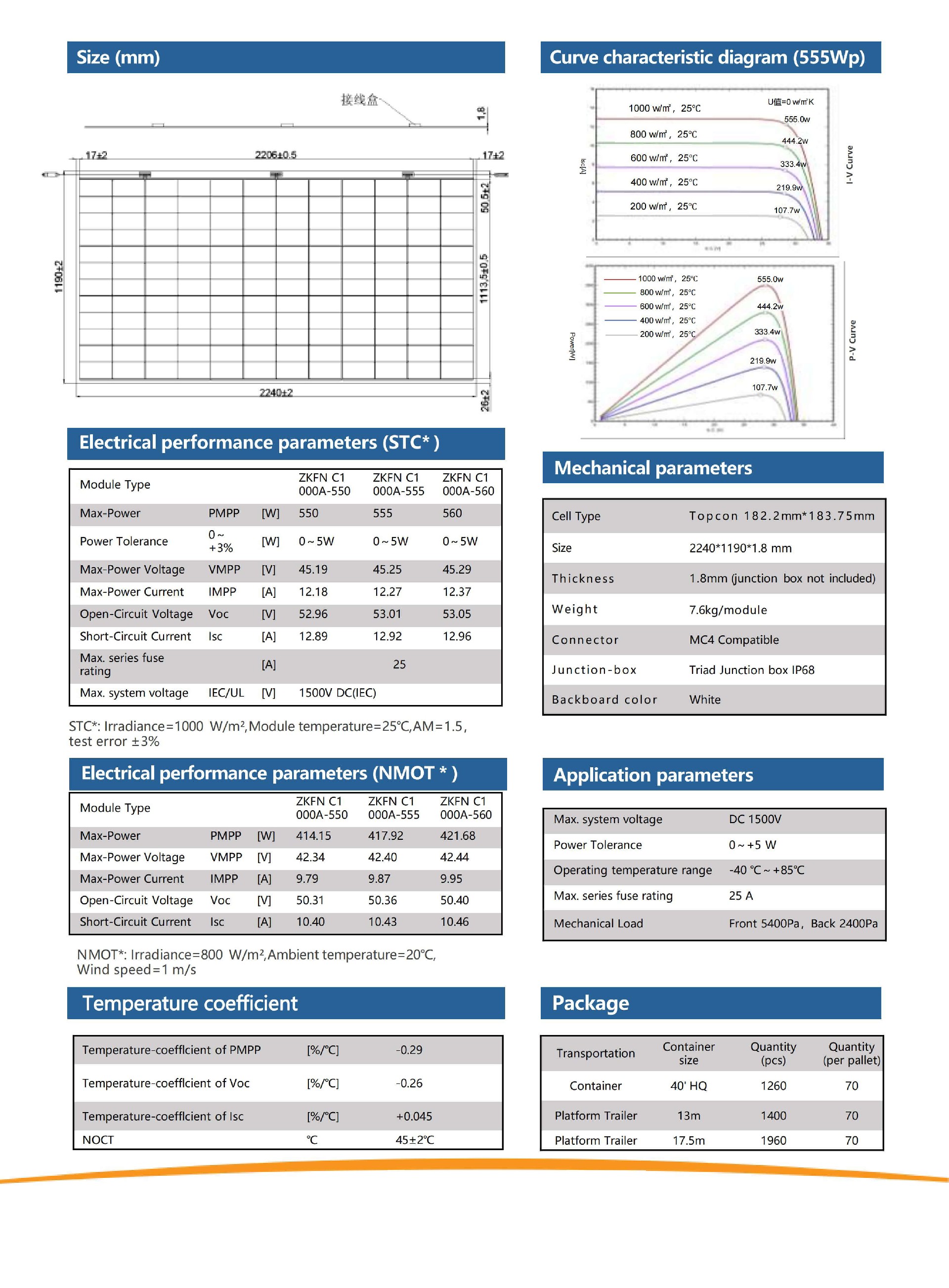

Basic parameters

The component size is 2240×1190mm; the weight of a single piece is 7.6kg; it supports mass transportation in containers and flatbed trailers.
